Insta360 X4 Air Invisible Dive Case เคสกันน้ำลึก X4 Air ของแท้ By AquaproThailand
– Completely invisible in 360 videos for seamless underwater stitching.
– Waterproof down to 197ft (60m).
– Unique dome design eliminates distortion and warping, no matter how deep you go.
Use with the Invisible Selfie Stick for epic third-person views and incredible selfies.
– Quick-dry Storage Bag protects your Invisible Dive Case from bumps and scratches and can be attached to a Buoyancy Control Device (BCD). Usable both on land and underwater.
Compatibility
X4 Air

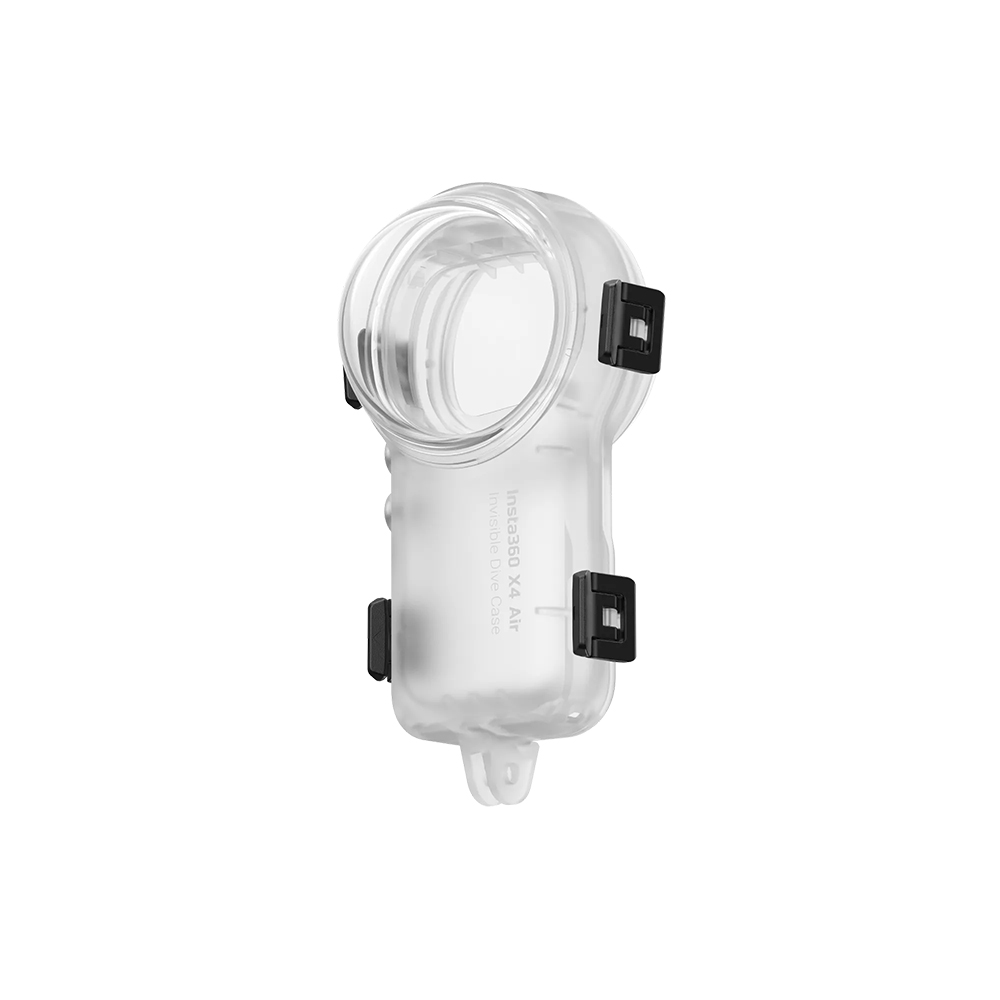

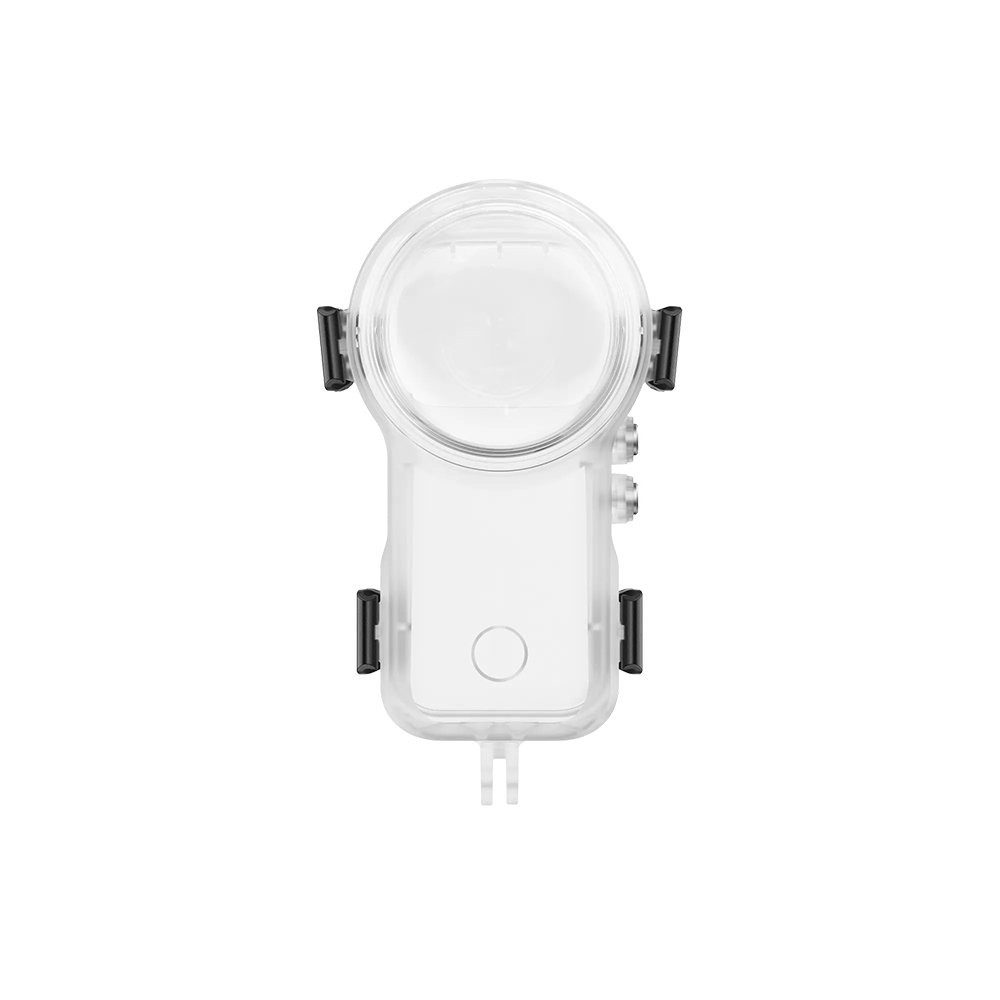

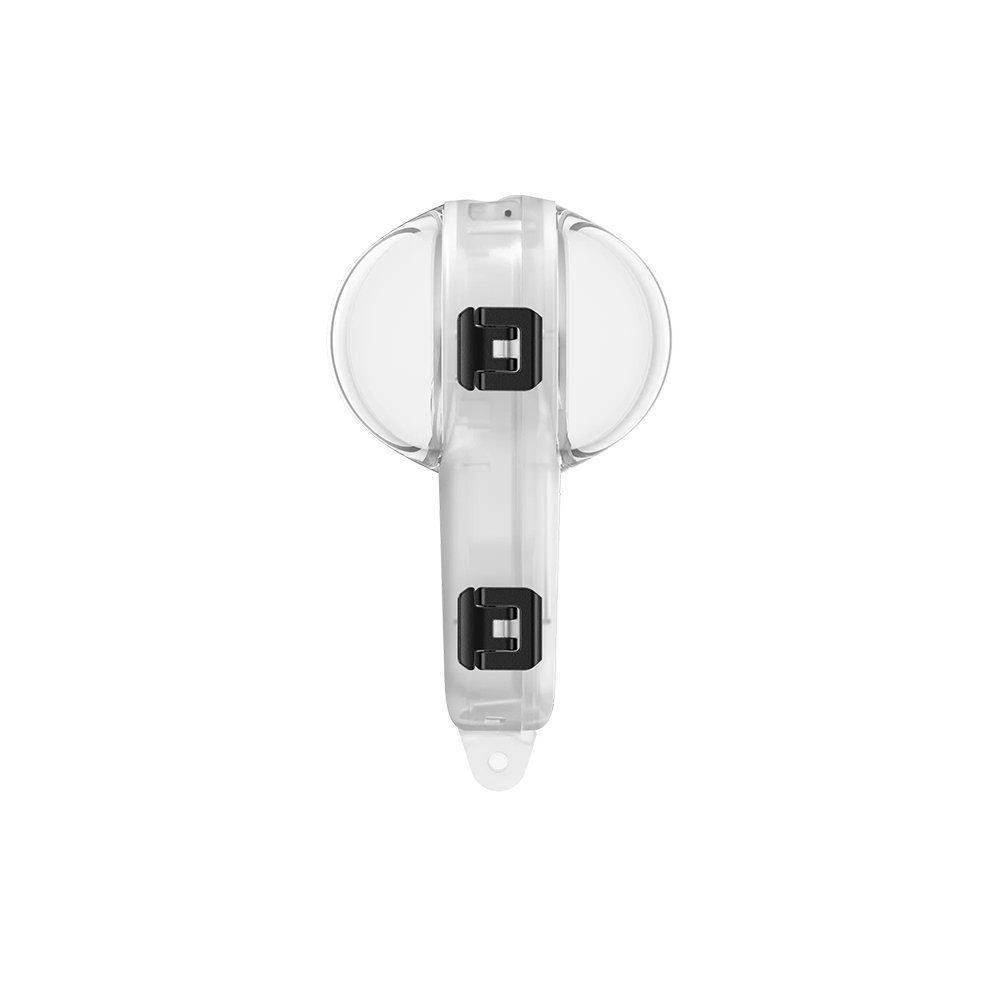

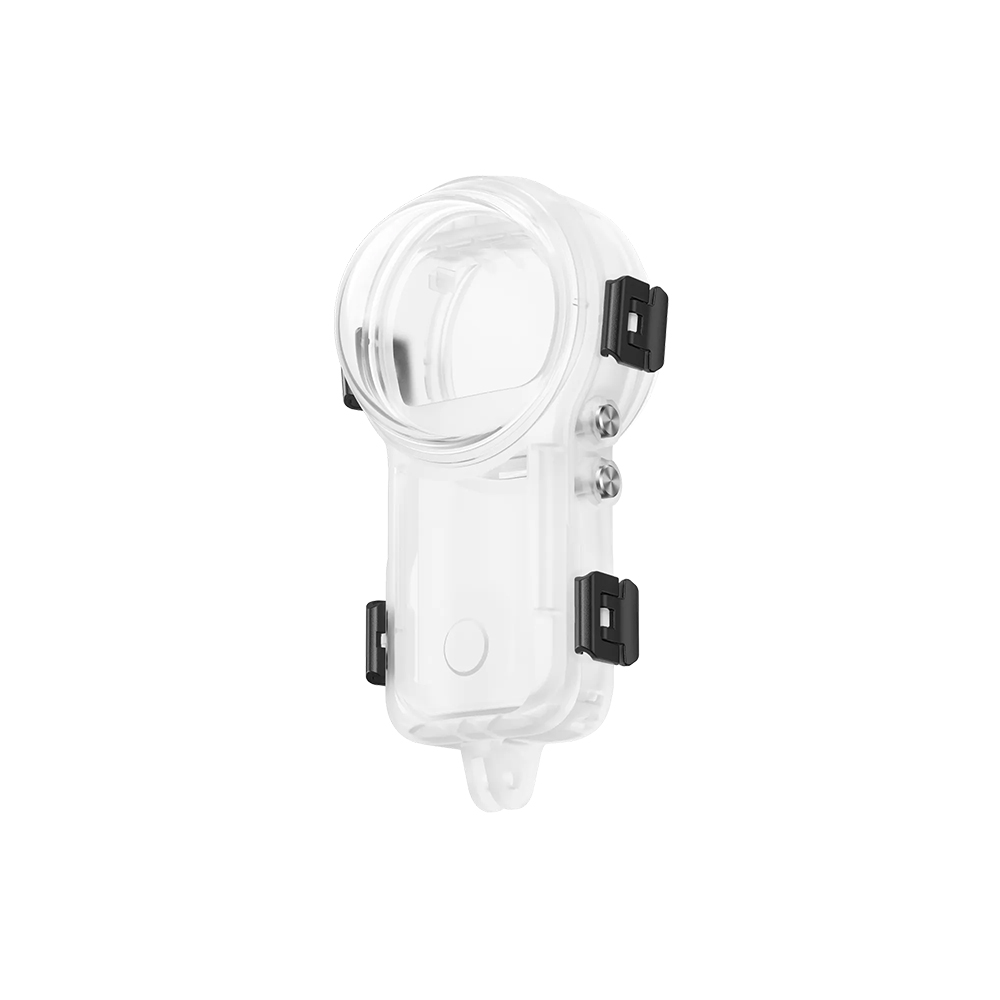

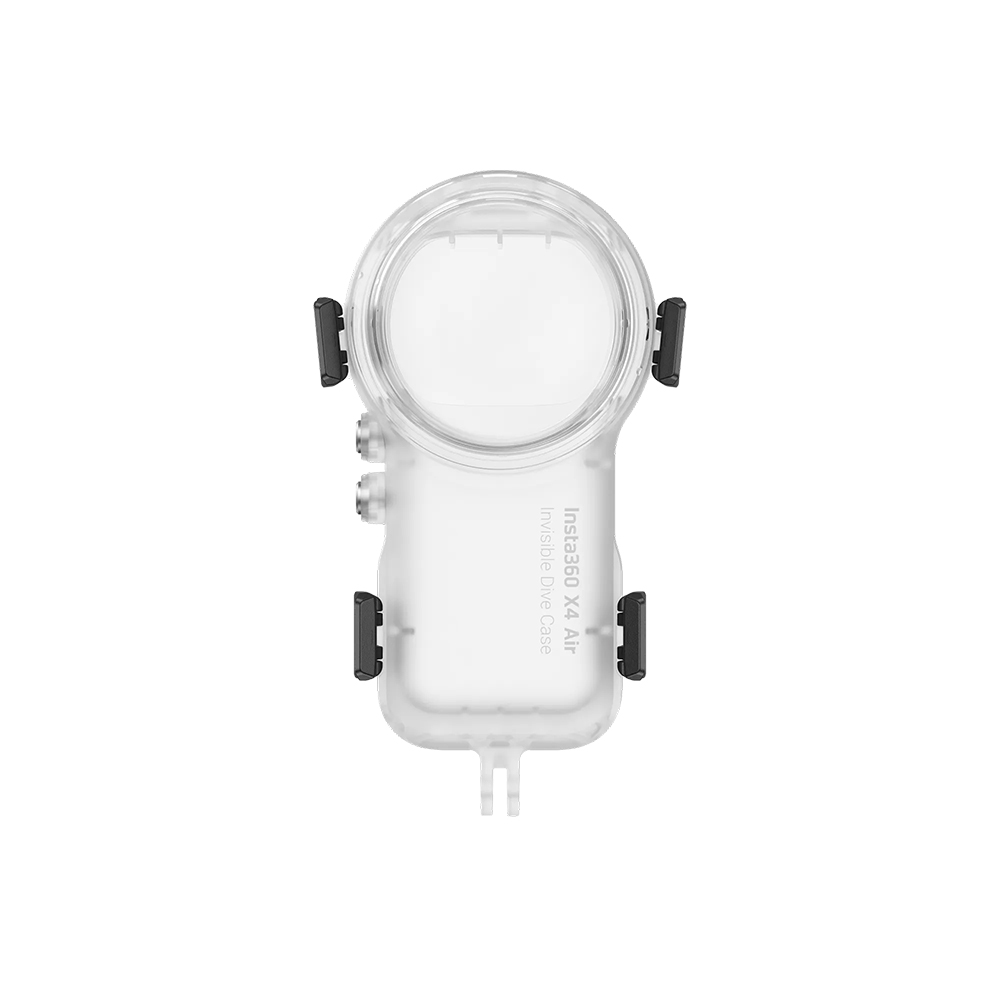

– Invisible Dive Case
Next-level underwater footage.
– Disappears without a trace.
Get seamless 360 underwater shots with our fully invisible dive case. No blind spots, no bulky gear.
– Flawless footage beneath the waves.
The smart dome design counters underwater refraction, distortion and warping for seamless 360 footage.
– Take the plunge.
With a pro-grade IPX9K waterproof seal, you can dive down to 197ft (60m) and capture the ocean’s hidden wonders without worry
– Dry out and dive again.
Comes with a quick-dry Storage Bag that protects your gear above and below the surface. Attaches to a Buoyancy Control Device (BCD) for easy access.
– Tried and tested.
Built, tested, and trusted by Insta360 for pros who don’t just dip their toes in.
– In the Box
1x Invisible Dive Case
12x Anti-Fog Inserts
1x 1/4′ to 3-Prong Adapter
1x Thumb Screw
1x Storage Bag
Specs
Weight:
158g±2g (5.6oz± 0.1oz)
Dimensions:
157x91x91.6mm(6.2×3.6×3.6in)
Material:
Plastic, stainless steel, silicone
How to Use
1 Open the Case
Lift the locking arm (O) and release the lock catch (2). Once
all four buckles are unhooked, open the dive case.
2 Attach Anti-Fog Inserts
Insert the anti-fog inserts as shown below.
Note:
When using third-party anti-fog inserts, ensure that the size is
within 37.1x19x1.2mm. If the insert is too large, it may cause
water leakage and damage the camera.

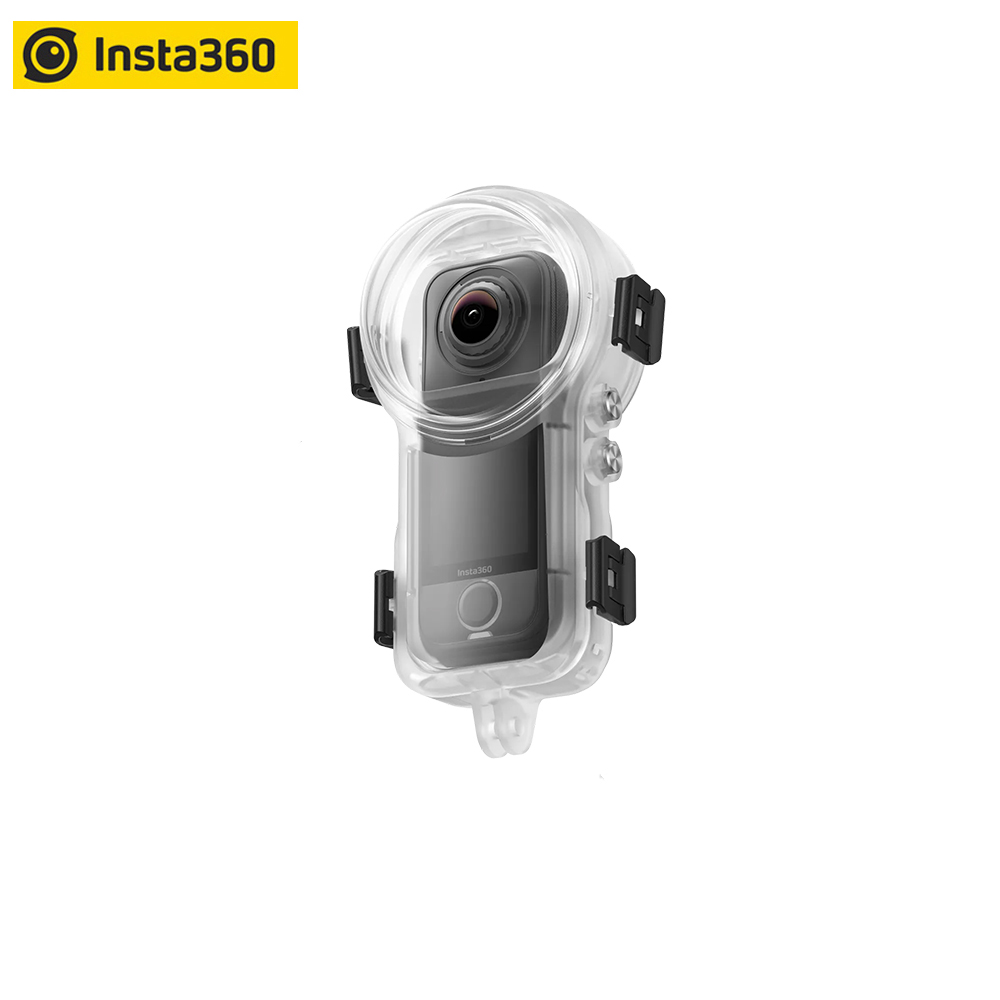

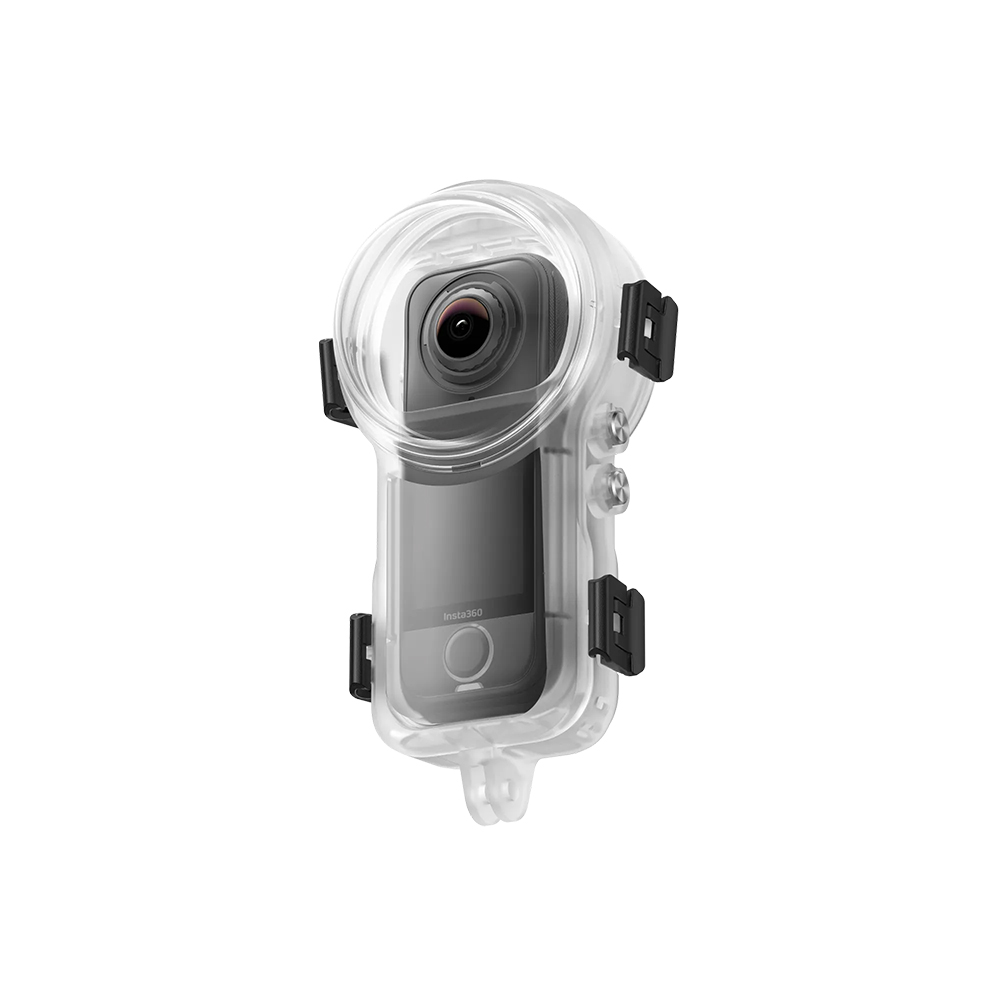

3 Insert the Camera
. Remove any lens guards and ensure that the camera lenses
and the Dive Case interior are clean and free from dirt and
dust.
Activate Dive Case Mode
. Swipe down on the touchscreen to access the Shortcut
Menu. Tap Accessories > Dive Case > Enable Now.
. Alternatively, long press the Quick Button to activate Dive
Case Mode.
. Place the camera into the dive case as shown in the diagram
below. Ensure the buttons are aligned correctly.
Notes:
. When in Dive Case Mode, press the Power Button to switch
shooting modes and the Quick Button to start or stop
shooting. For more information, refer to the “Button
Instructions in Dive Case Mode” in the manual.
. Take care not to scratch the lens when inserting the camera
into the case.
4 Close the Case
Close the dive case (@). Hook the locking arm onto the lock
catch (), then press down on the locking arm () until you
hear a click. Repeat this process to secure all buckles.
Notes
Before use, ensure the dive case is firmly closed. Check the
parts of the dive case in contact with its rubber seal are free
of dirt and dust.
. For the best shooting results, keep the dive case lenses clean.
6 Attach Other Accessories
Install a Selfie Stick
. When using a selfie stick, mount it to the dive case with the
included anti-tilt 1/4′ to 3-prong adapter and thumb screw. To
prevent the selfie stick or dive case from coming loose due to
strong water flow, be sure to fully tighten the thumb screw
using the wrench.
. To achieve the invisible selfie stick effect, always keep the
selfie stick and the case in a straight line.
Use the Storage Bag
1. Unclip the snap buckle, lift the flap, and place the dive case
with the attached selfie stick into the storage bag.
2. Attach the storage bag to a Buoyancy Control Device (BCD) in
the following ways:
. Use the Velcro on the back of the storage bag to attach it to
the shoulder strap of the BCD.
. Use the Velcro on the back of the storage bag to attach it to
the waist strap of the BCD.
Note: When using Velcro to attach the storage bag, it’s
recommended to also tether it to the BCD via the side
attachment loop to prevent it from coming loose.
. Use the side attachment loop on the storage bag together
with a carabiner (sold separately) to secure it to a D-ring on
the BCD.
6 Stitching
1. For optimal stitching, keep one lens facing your subject. To
reduce glare underwater, avoid pointing the dive case lenses
toward the surface.
2. After shooting, open the files in the Insta360 app or Studio.
Footage captured with the Invisible Dive Case will be
automatically stitched.
3. When the camera is out of the case, swipe up on the camera
touchscreen to exit Dive Case Mode for optimal image quality.
Notes
1. Do not open the dive case while it is wet.
2. After using the Invisible Dive Case in saltwater, clean it as
follows:
. Remove the camera and securely close the dive case.
. Soak the case in fresh water for 5-10 minutes to prevent
residual salt from crystallizing in gaps. These salt crystals
will not dissolve in water and can lift the rubber seal and
cause water leakage.
. Rinse gently under a faucet. Never apply a strong water
stream from a single direction, as it may cause water
leakage.
. After washing, wipe away any water droplets remaining on
the surface with a soft, dry cloth and leave to dry. Ensure
there is no sand on the dive case before wiping, as sand may
scratch the surface when wiped with a cloth.
3. Do not dry with a hair dryer or any other heat source, as it may
damage the dive case.
4. Do not clean the dive case with soapy water, neutral
detergents, alcohol, or organic solvents (such as thinner or
gasoline), as this may degrade its waterproof performance.
5. To prevent discoloration or staining of the dive case, avoid
contact with cosmetic products such as sunscreen,
foundation, and hand cream.
6. Do not store the dive case in a hot or humid environment. In
particular, avoid leaving it inside a hot car.
7. Store the case in a dry, well-ventilated location.
